| NO： | Clampstick Series |
| Specifications： | Ø20 | Ø32 | SK50 |
| Description： | Ø 13 | 16 | 22 | 27 | 32 | 40 mm ... |

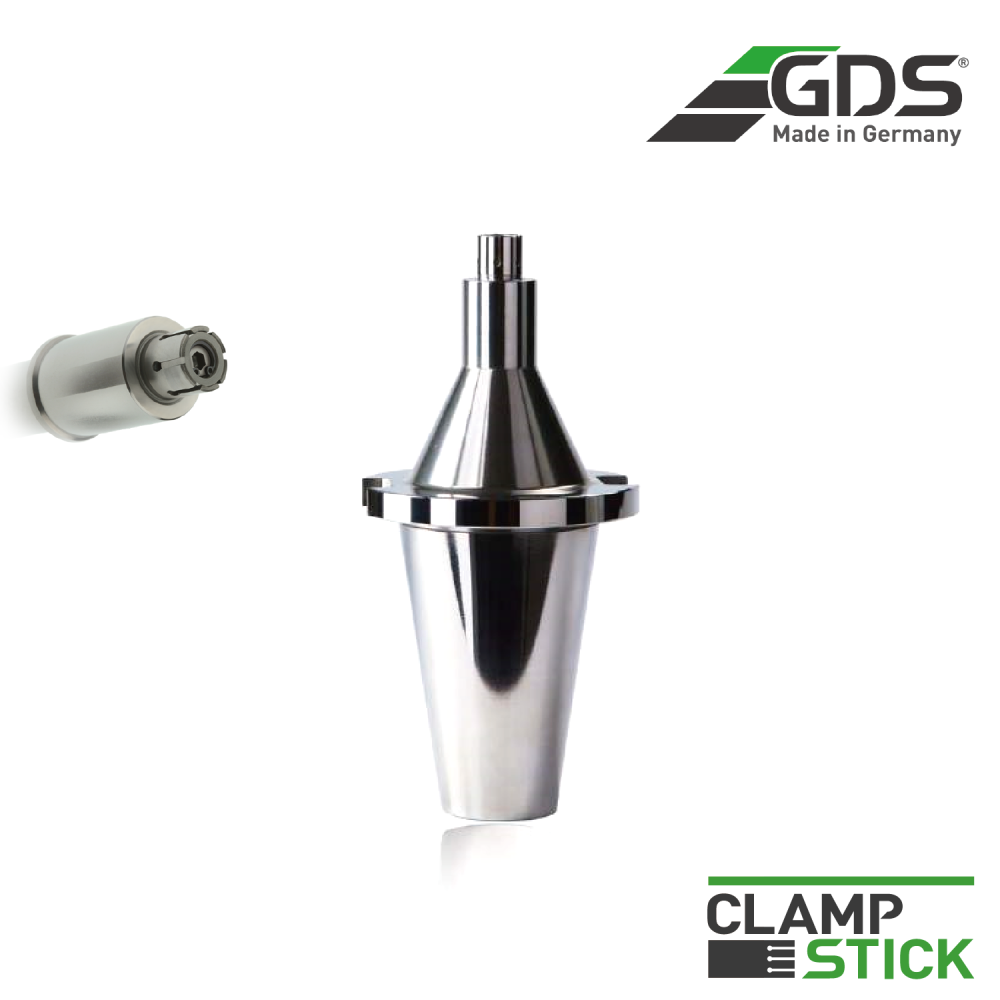

GDS Clamp Sticks are expanding mandrels with extremely tight concentricity and runout tolerances, and makes them a productive solution for clamping tools with an internal bore. It allows you to manufacture and regrind tools with high precision and consistent quality. It’s fast and easy handling offers you enormous flexibility.
Features:
- Slim profile for optimal grinding wheel clearance and selection flexibility
- Suitable for tools with internal bore (I.D) tolerance ≤ H7
- Concentricity ≤ 0.005 mm
- Maximum expansion rate: 0,1
Your Advantages:
- Excellent concentricity and runout properties
- Various clamping diameters available (13, 16, 22, 27, 32, & 40 mm)
- Available with cylindrical shanks (20 or 32 mm ø) or with an SK50 taper interface for wide applicability
