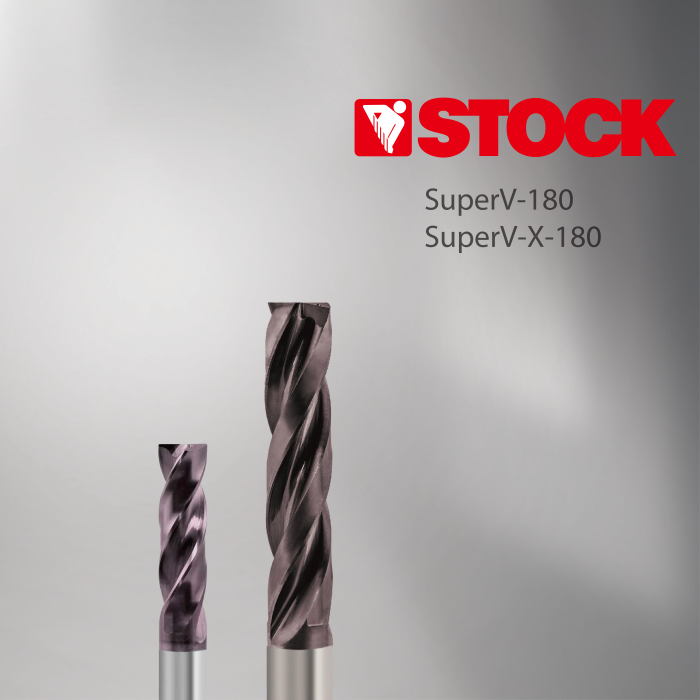

The SuperV-180 solid carbide flat bottom drills are ideally suited for drilling into oblique or curved surfaces. A finish pass with an end mill is unnecessary because the drill’s 180°-point angle produces holes with a true flat bottom surface. Therefore, subsequent drilling operations allow for extremely accurate centering with low vibration, eliminating tool changes and setups that would interrupt applications relying on pointed drills and other tools. Also, for applications in which the thread needs to extend to the bottom of a hole, a flat-bottom drill is ideal, eliminating the unthreaded gap left behind by pointed drills.
Features:
- 180° point geometry
- 4 facet point / 6 facet point
- main cutting edge form straight
- double margin design / 3-margin design
Your Advantages:
- extremely rigid drill
- suited for drilling into oblique or curved surfaces up to 45° without deflection
- piloting in all positions and materials
- ideal for machining inclined exits and cross-holes
- extremely high self-positioning accuracy
- significantly reduces burr formation
