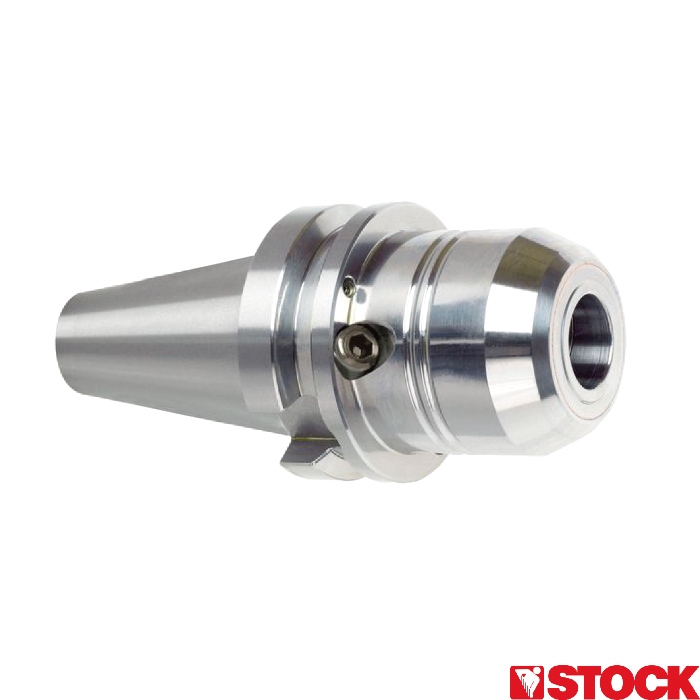

Modern machining processes place heavy demands on tool holding. STOCK hydraulic chucks provide excellent clamping characteristics combined with precise concentricity. Furthermore, they enable a simple and fast tool change, with the assistance of a special extraction key. Turning the pressure screw generates sucient pressure in the pressure chamber resulting in an elastic deformation of the clamping bush, providing powerful tool clamping and precise concentricity. A safe and powerful fit is guaranteed. If reduction bushes are applied that are able to hold varying tool diameters, the tool application may be extended without problem.
Features:
- Excellent concentricity and repeatability within 0.003 mm
- Excellent dampening properties，the hydraulic cushioning absorbs vibrations
- Safe and easy intermediate sleeve or tool change within seconds without special tools
- Covering the clamping range 3-32 mm with intermediate sleeves
Your Advantages:
- Excellent clamping characteristics
- Transmission of high torque due to optimized bush clamping system
- High speed compatibility, optimized cutting parameters
- Excellent surface qualities and dimensional accuracy of the workpiece
- Available in many diameters (6 ~ 32 mm),
the Ø12/20/32mm chucks clamp its native diameter plus smaller diameters using standard intermediate sleeves
- Optimal tool life
